4H SICOI Wafer--4H-SiC microring resonators for nonlinear integrated photonics

Paper Download

4H-SiC microring resonators for nonlinear integrated photonics.pdf

We provide 4-6 inch SICOI wafers (silicon carbide on insulator wafers). The wafers use surface activated bonding technology to bond thermal oxide wafers and 4H high-purity semi-insulating silicon carbide wafers together, and then control the thickness to the thickness you need through ion implantation, annealing, thinning or direct thinning and CMP polishing. It is worth noting that ion implantation and direct CMP and thinning have their own advantages and disadvantages.we also have many stock ,you can visit this page to know more : SICOI Wafer（ Silicon Carbide on Insualtor）

The article titled "4H-SiC Microring Resonators for Nonlinear Integrated Photonics" explores the development and use of high-confinement microring resonators made from 4H-silicon carbide-on-insulator (SiCOI) for enhanced nonlinear optical processes, specifically focusing on four-wave mixing (FWM). Key findings and highlights include:

- **Enhanced Four-Wave Mixing (FWM):** The microring resonators exhibit enhanced FWM, achieving a conversion efficiency of -21.7 dB with a 79 mW pump power. This is attributed to the strong light confinement and large power buildup within the resonator.

- **High Nonlinear Parameter:** The researchers obtained a high nonlinear parameter (γ) of 7.4 W⁻¹ m⁻¹, which is about twice as high as previous reports. This improvement is essential for efficient nonlinear optical processes.

- **Nonlinear Refractive Index:** The nonlinear refractive index (n₂) of 4H-SiC at telecom wavelengths is estimated to be \(6.0 \times 10^{-19} \, m^2/W\), indicating strong nonlinear behavior of the material.

- **Broadband Operation:** The SiCOI waveguides are dispersion-engineered to achieve a 3 dB FWM conversion bandwidth of over 130 nm, which is highly favorable for broadband signal processing applications.

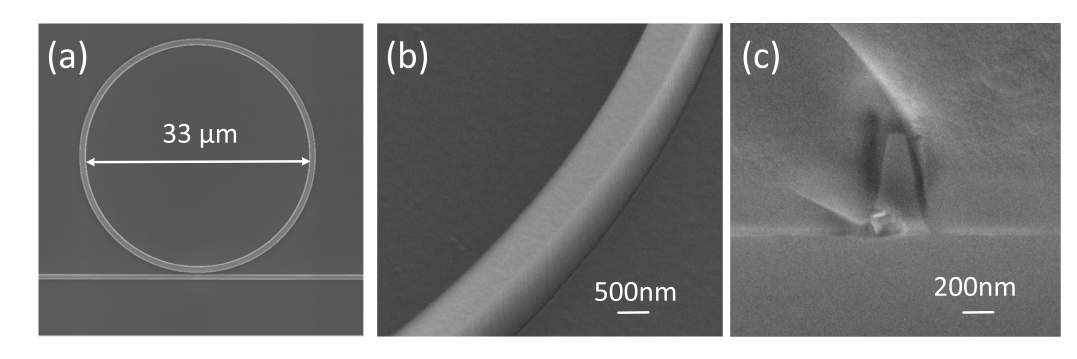

- **Fabrication Process:** The devices were fabricated using advanced lithography and oxidation techniques, achieving submicron dimensions (700 nm x 500 nm), which were critical for the observed nonlinear performance.

This study demonstrates the potential of 4H-SiC microring resonators for nonlinear photonics applications, such as all-optical signal processing, by exploiting their strong nonlinear optical properties and broadband capabilities.
