4H SICOI Wafer--4H-SiC microring resonators for nonlinear integrated photonics

Paper Download

High Q microresonators on 4H silicon carbide on insulator platform for nonlinear photonics.pdf

We provide 4-6 inch SICOI wafers (silicon carbide on insulator wafers). The wafers use surface activated bonding technology to bond thermal oxide wafers and 4H high-purity semi-insulating silicon carbide wafers together, and then control the thickness to the thickness you need through ion implantation, annealing, thinning or direct thinning and CMP polishing. It is worth noting that ion implantation and direct CMP and thinning have their own advantages and disadvantages.we also have many stock ,you can visit this page to know more : SICOI Wafer（ Silicon Carbide on Insualtor）

The article titled **"High-Q Microresonators on 4H-Silicon-Carbide-on-Insulator Platform for Nonlinear Photonics"** explores the development of high-quality (Q) factor microresonators made from 4H-silicon-carbide-on-insulator (4H-SiCOI) material for nonlinear photonics applications. Key points include:

1. **High-Q Microresonators:** The study demonstrates the fabrication of high-Q microresonators on a 4H-SiCOI platform with an average Q factor of 6.75 × 10⁶, and a record-high Q factor of 7.1 × 10⁶. These high-Q resonators enable efficient confinement of light, crucial for enhancing nonlinear optical effects such as harmonic generation and frequency combs.

2. **Nonlinear Optical Processes:**

   - The researchers observed second, third, and fourth harmonic generation (SHG, THG, FHG) in these resonators, showcasing the potential for efficient light frequency conversion.

   - They also demonstrated cascaded Raman lasing for the first time in SiC microresonators, with threshold pump powers of 10 mW for the first-order and 14 mW for the second-order Raman lasing.

   - Kerr frequency comb generation covering a broad range from 1300 nm to 1700 nm was achieved at a low power threshold of 13 mW, indicating the potential of these devices for broadband optical communications.

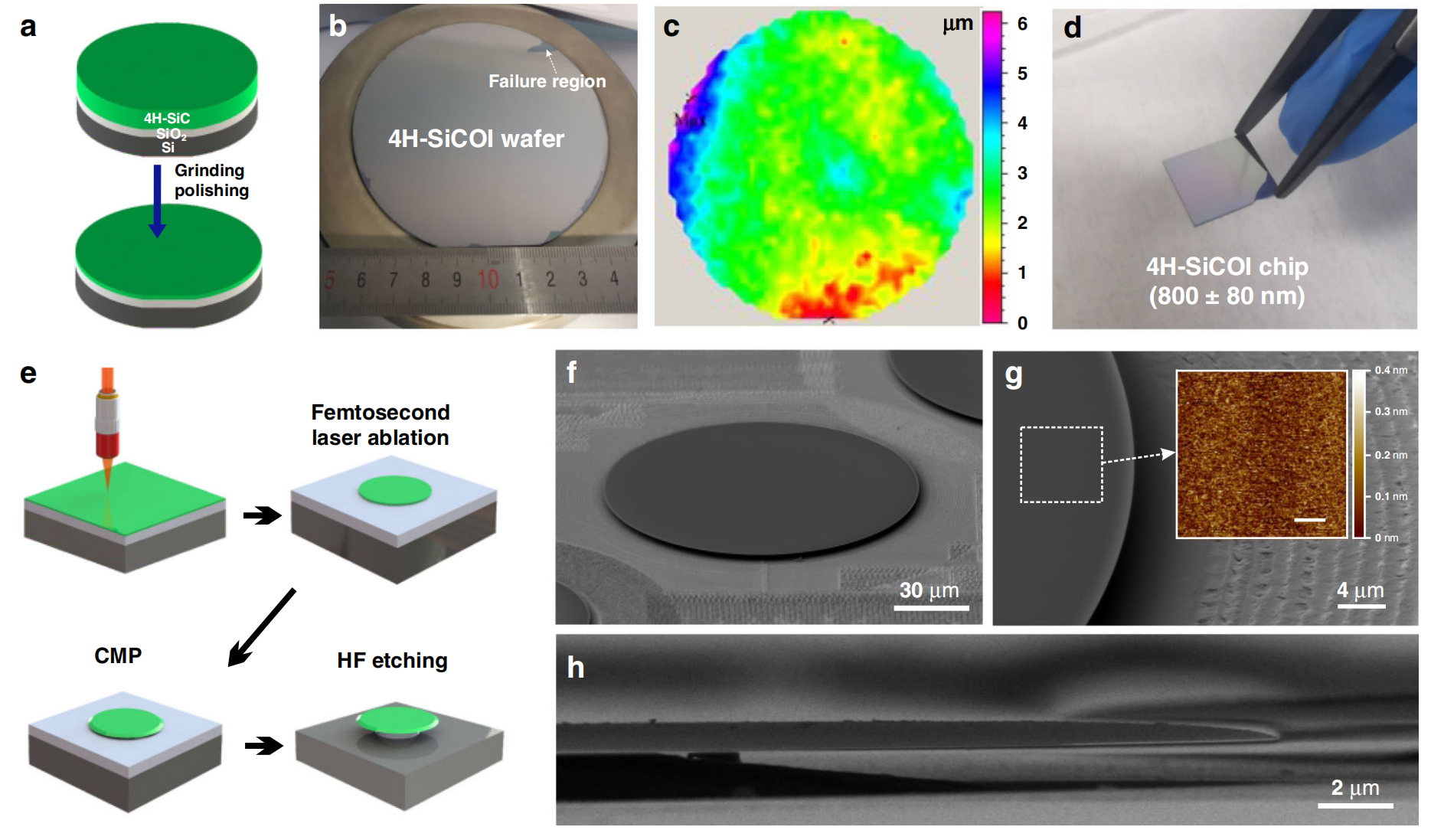

3. **Fabrication Process:** The 4H-SiCOI platform was prepared using wafer-bonding and thinning techniques to create high-quality SiC layers on an insulator. The microresonators were fabricated with ultra-smooth surfaces using femtosecond laser machining followed by chemical-mechanical polishing (CMP), achieving a surface roughness of 0.1 nm.

4. **Applications:** These high-Q microresonators are promising for applications in nonlinear photonics, such as all-optical signal processing, frequency comb generation, and quantum photonics, thanks to their strong nonlinear properties and wide transparency window (0.37–5.6 μm).

In summary, the study highlights the 4H-SiCOI platform's potential for integrating electronics, nonlinear photonics, and quantum applications, offering a pathway to scalable, wafer-level photonic devices.
