Unlocking the electro–optic potential of ferroelectrics: advanced domain and phase manipulation

The article presents an advanced approach to enhancing the electro-optic (EO) properties of PbZr0.52Ti0.48O3 (PZT) thin films through domain and phase manipulation. The study demonstrates a significant improvement in the EO coefficient, achieving a value of ~233.5 pm/V, which is seven times greater than that of the conventional EO material LiNbO3 (~31 pm/V).

Key Findings:

1. Improved EO Coefficient: The study reports an exceptionally high effective EO coefficient (~233.5 pm/V) for PZT thin films, surpassing the theoretical limit (~13 pm/V) and outperforming LiNbO3 (~31 pm/V). This improvement is attributed to the combination of phase transitions and domain wall variations.

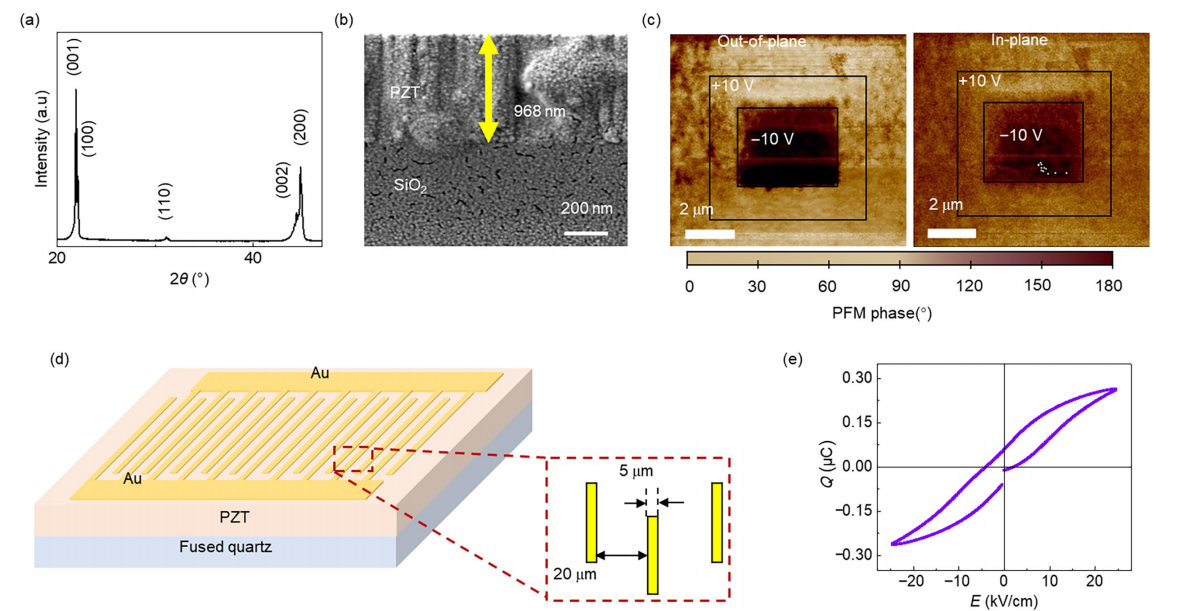

2. Film Structure: The PZT films exhibit a mixed crystal orientation, with [001] and [100] directions, contributing to a relaxed structure. The films display nanosized domains and a disordered nanoscale phase, allowing unprecedented control over polarization.

3. Phase Transition and Domain Wall Variation: Unlike conventional domain switching, phase transitions and the migration of domain walls play a critical role in enhancing the EO effect. The manipulation of polarization through these mechanisms results in a much larger refractive index modulation, explaining the increased EO coefficient.

4. Experimental and Theoretical Methods: The study combines in situ TEM (Transmission Electron Microscopy) for microstructural analysis with density functional theory (DFT) and phase field modeling to understand the contribution of phase evolution, domain switching, and domain wall concentration variations to the EO effect.

5. Applications and Potential: Given the high Curie temperature (~347 °C) and compatibility with wafer-scale fabrication, the PZT films are promising candidates for next-generation EO modulators. The findings also suggest potential applications in integrated photonics, energy storage, and electrocaloric cooling.

Conclusion:

The study demonstrates that by leveraging advanced techniques in domain and phase manipulation, PZT thin films can achieve a dramatically enhanced EO coefficient, bridging the gap between theoretical predictions and experimental results. This research provides a promising route for developing high-performance EO materials and devices for various applications in integrated photonics and energy-related technologies.
