The article explores phononic four-wave mixing (FWM) in aluminum scandium nitride (AlScN) on silicon carbide (SiC) heterostructures, focusing on guided surface acoustic waves (SAWs) at gigahertz frequencies. The study compares the behavior of two modes: Rayleigh and Sezawa, at room (295 K) and cryogenic (4 K) temperatures.
Key findings:
Temperature and Mode Effects: The Rayleigh mode exhibited a significantly larger modal nonlinearity compared to the Sezawa mode, with an enhancement of four-wave mixing efficiency at 4 K relative to 295 K. At 4 K, the Rayleigh mode showed a nearly 450x larger nonlinear coefficient compared to the Sezawa mode's 4x enhancement.
Nonlinear Behavior: The Rayleigh mode's nonlinear behavior was enhanced at lower temperatures, due to the reduction in resistive losses and thermally activated dissipation channels. This is analogous to the increased nonlinear efficiency seen in photonic systems at cryogenic temperatures.

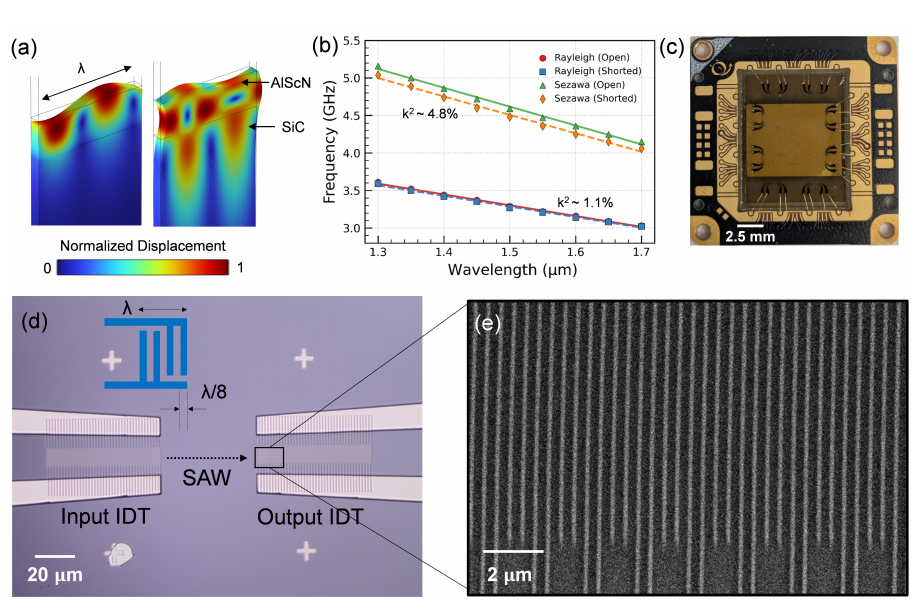

Experimental Setup and Measurements: The devices were fabricated using reactive pulsed-DC magnetron co-sputtering and e-beam lithography. The Rayleigh and Sezawa modes' transmission, power conversion efficiency (PCE), and modal nonlinear coefficients were measured using a vector network analyzer and a spectrum analyzer. The results demonstrated that the Rayleigh mode had higher power conversion efficiency and nonlinearity at both temperatures.
Interpretation and Future Implications: The enhancement of phononic FWM at 4 K was attributed to reduced acoustic propagation losses and the intrinsic properties of the Rayleigh mode. This work suggests that AlScN/SiC heterostructures are promising platforms for future applications in classical and quantum acoustic signal processing, offering enhanced nonlinear phononic interactions for both high-performance signal processing and quantum systems.
The study highlights the significance of mode confinement, strain localization, and temperature in phononic nonlinear interactions, establishing a strong foundation for future advancements in quantum and classical acoustic systems.
